Ti(C,N) powder 0.8-2µm for cermet cutting inserts. TiC0.5N0.5 to TiC0.7N0.3 and custom ratios, O < 0.6%, certified carbon/nitrogen per lot. Tungsten-free.
QUICK ANSWER
TiCN powder is titanium carbonitride — a TiC-TiN solid solution (typically TiC₀.₅N₀.₅ to TiC₀.₇N₀.₃) — whose tunable carbon-nitrogen ratio delivers hardness between TiC and TiN with better toughness and wettability than either. It is the modern standard hard phase in cermet cutting inserts and a premium additive in hardfacing and PVD-target manufacture.
The carbonitride advantage is metallurgical: nitrogen in the lattice refines the cermet microstructure, improves binder wetting during sintering, and raises toughness without sacrificing much hardness — which is why virtually all modern cermet grades are Ti(C,N)-based rather than straight TiC. The C:N ratio is a design dial: higher carbon for hardness and wear resistance, higher nitrogen for toughness and thermal shock resistance. Powder buyers specify the ratio, particle size (submicron for inserts), and oxygen content; lot-to-lot ratio consistency matters because it shifts sintering shrinkage and final grade properties.
MATERIAL DATA
Lot-level controls focus on the chemistry, particle characteristics, and process values that influence manufacturing consistency and finished-part performance.
| Element | Content | Performance Role |
|---|---|---|
| Titanium (Ti) | ~78-82 wt% | Metallic base of the carbonitride lattice |
| Combined carbon (C) | 8-14 wt% (ratio dependent) | Carbon fraction — the hardness dial |
| Nitrogen (N) | 8-14 wt% (ratio dependent) | Nitrogen fraction — the toughness and wetting dial |
| Oxygen (O) | < 0.6 wt% (submicron grades) | Surface oxide hinders binder wetting in sintering |
| Free carbon | < 0.3 wt% | Controlled to prevent brittle phase formation |
Final limits can be aligned with the agreed purchase specification.
APPLICATIONS

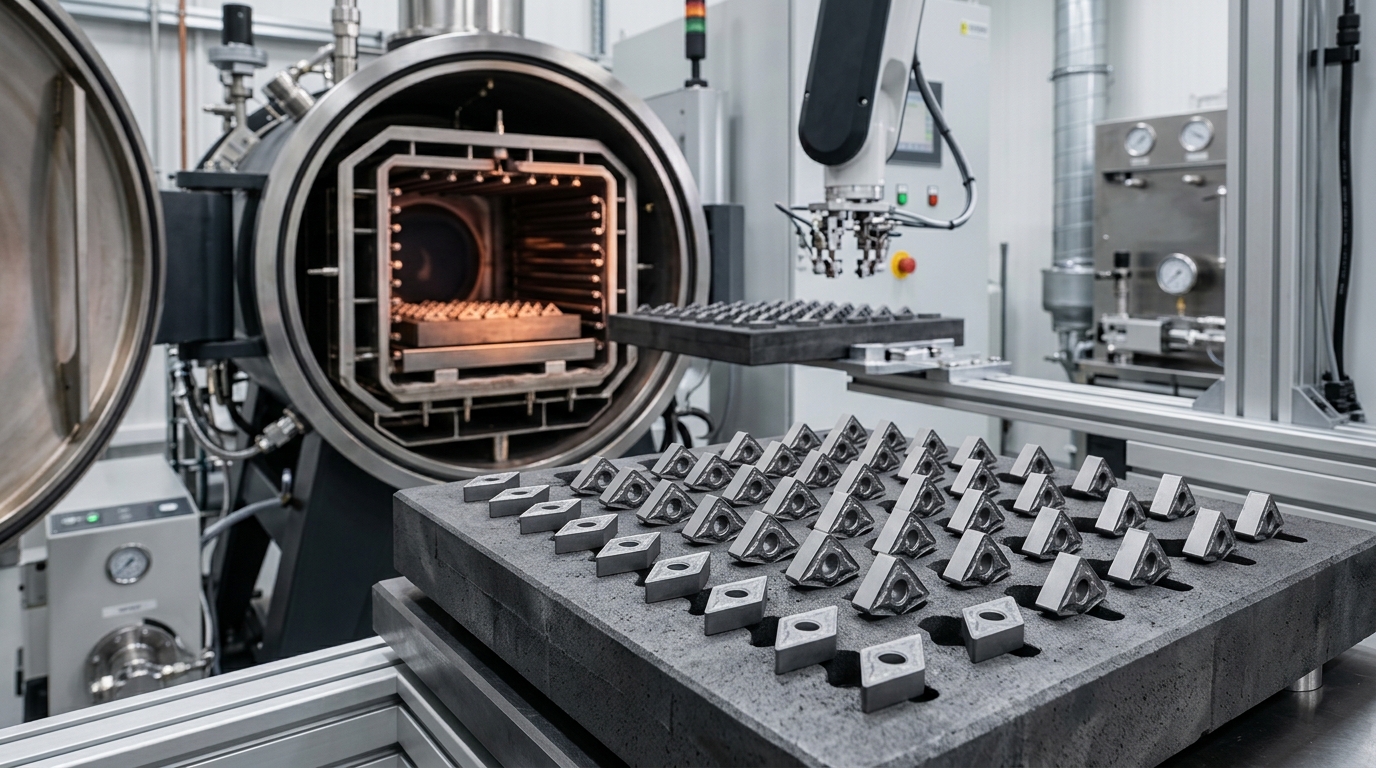

Cermet cutting insert manufacture is the dominant application: modern cermet grades use Ti(C,N) as the core hard phase with WC, Mo₂C, TaC/NbC additions in Ni-Co binder, sintered into finishing inserts that dominate steel finishing in automotive transmission and bearing production. The insert maker's grade development starts from the carbonitride ratio and particle size — fine, consistent TiCN powder with certified C:N ratio is the foundation raw material, purchased on long qualification cycles and then in steady volume.
Beyond inserts, TiCN serves PVD coating target production (sintered TiCN targets deposit the blue-black wear coatings on drills and end mills), hardfacing blends where its toughness outperforms TiC in impact-loaded wear, and cermet rod and wear part production for seal rings and nozzles. Each market rewards the same powder attributes: ratio consistency, submicron size with narrow distribution, and low oxygen.
CARBIDE & DIAMOND TOOL MATRIX POWDERS
CUSTOM SUPPLY
We supply TiCN in standard TiC₀.₅N₀.₅ and TiC₀.₇N₀.₃ ratios with custom C:N on request, submicron cermet grades with certified oxygen and free carbon, and coarser cuts for hardfacing and targets. Blending guidance for cermet formulations and qualification samples against your sintering cycle are standard. Not export-controlled.
We supply TiCN in standard TiC₀.₅N₀.₅ and TiC₀.₇N₀.₃ ratios with custom C:N on request, submicron cermet grades with certified oxygen and free carbon, and coarser cuts for hardfacing and targets.
Blending guidance for cermet formulations and qualification samples against your sintering cycle are standard.
MATERIAL COMPARISON
| Comparison Point | This Product | TiC |
|---|---|---|
| Toughness | Higher — N toughens the lattice | Lower |
| Hardness | 2800-3200 HV | 3000-3200 HV — marginally higher |
| Binder wetting | Better — sinters denser | Adequate |
| Microstructure in cermet | Finer, core-rim structure | Coarser |
| Cutting application | Finishing to semi-finishing | Finishing only |
| Industry status | Modern standard | Legacy base |
TECHNICAL FAQ
Need a different chemistry, particle range, or processing route? Our material team can review the requirement and supply window.
TiC₀.₇N₀.₃ for maximum hardness in pure finishing; TiC₀.₅N₀.₅ for balanced finishing-to-semi-finishing; higher nitrogen for interrupted cuts. We supply all standard ratios and blend custom ratios to your grade development.
Surface oxides block nickel binder wetting during liquid-phase sintering, leaving porosity and weak interfaces. Submicron cermet grade must run below 0.6% O; we certify per lot.
Yes — shrinkage in sintering tracks C:N ratio, particle size distribution, and oxygen. Send your current powder data and sintering cycle; we tune the distribution to match dimensional behavior.
Yes — our coarser, high-density sintering grade serves target manufacture, with ratio control ensuring coating stoichiometry. Tell us your target density requirement.
No. Titanium carbonitride ships without licensing requirements.
RELATED PRODUCTS
Compare neighboring grades from the same material family, then review the complete category for additional chemistry and particle options.
Cr3C2 powder, 2200 HV, oxidation-resistant to 900°C. Spray-blend grade for Cr3C2-25NiCr HVOF coatings, CCO wire fill and cermet additive cuts. XRD phase certified.
Pre-alloyed FeCuCo bond powder for diamond saw segments and core drills. Ratios from Fe70Cu20Co10 to Fe50Cu20Co30, custom blends, sintered data per lot. No WC, no licensing.
99.8% submicron cobalt binder powder for carbide inserts and diamond tool bonds. O < 0.8%, magnetic assay certified, extra-fine grades for ultrafine carbide lines.
REQUEST THIS GRADE
Share your target chemistry, particle size, process, annual volume, and destination. Our powder specialists will confirm the closest production grade and documentation package.
